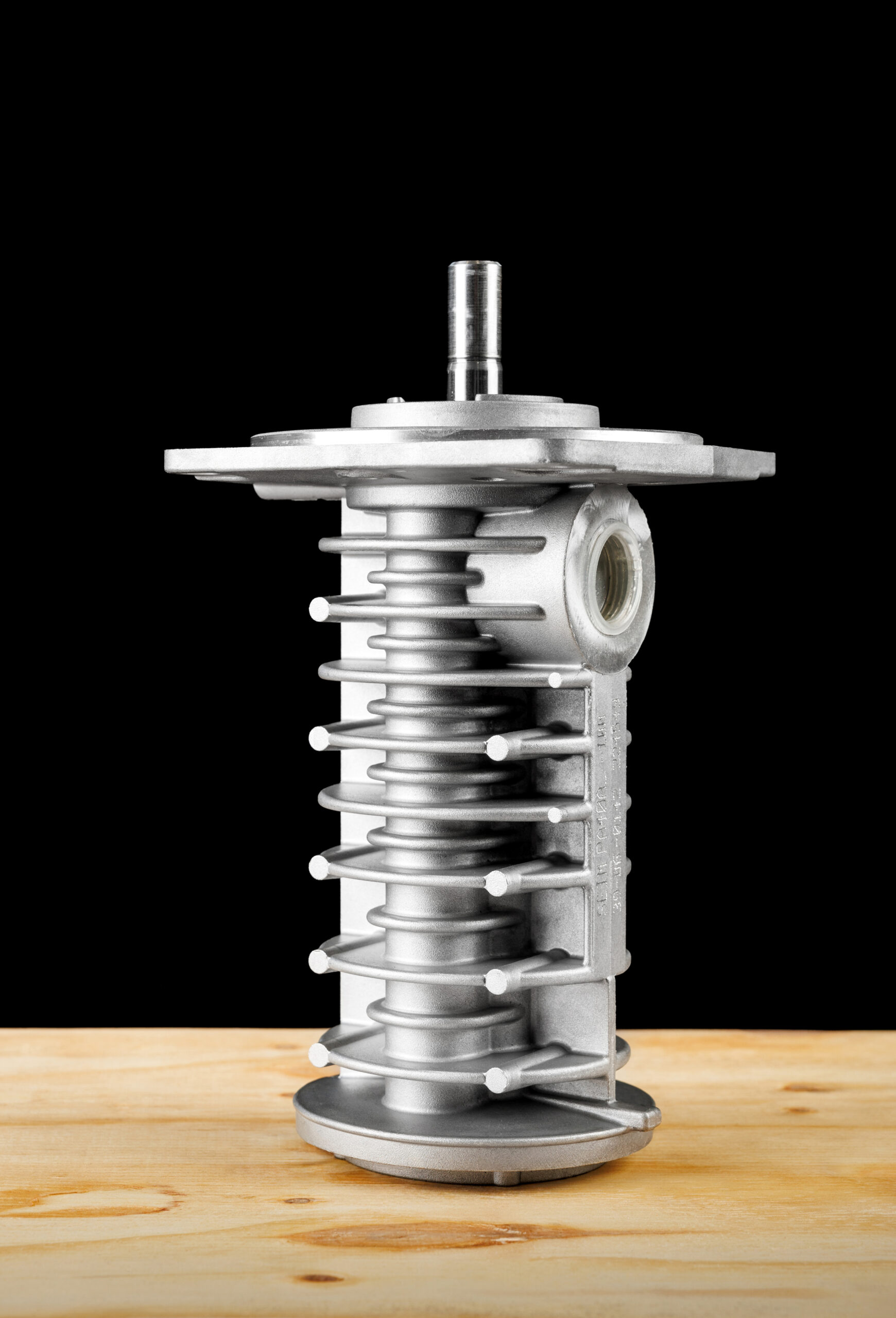

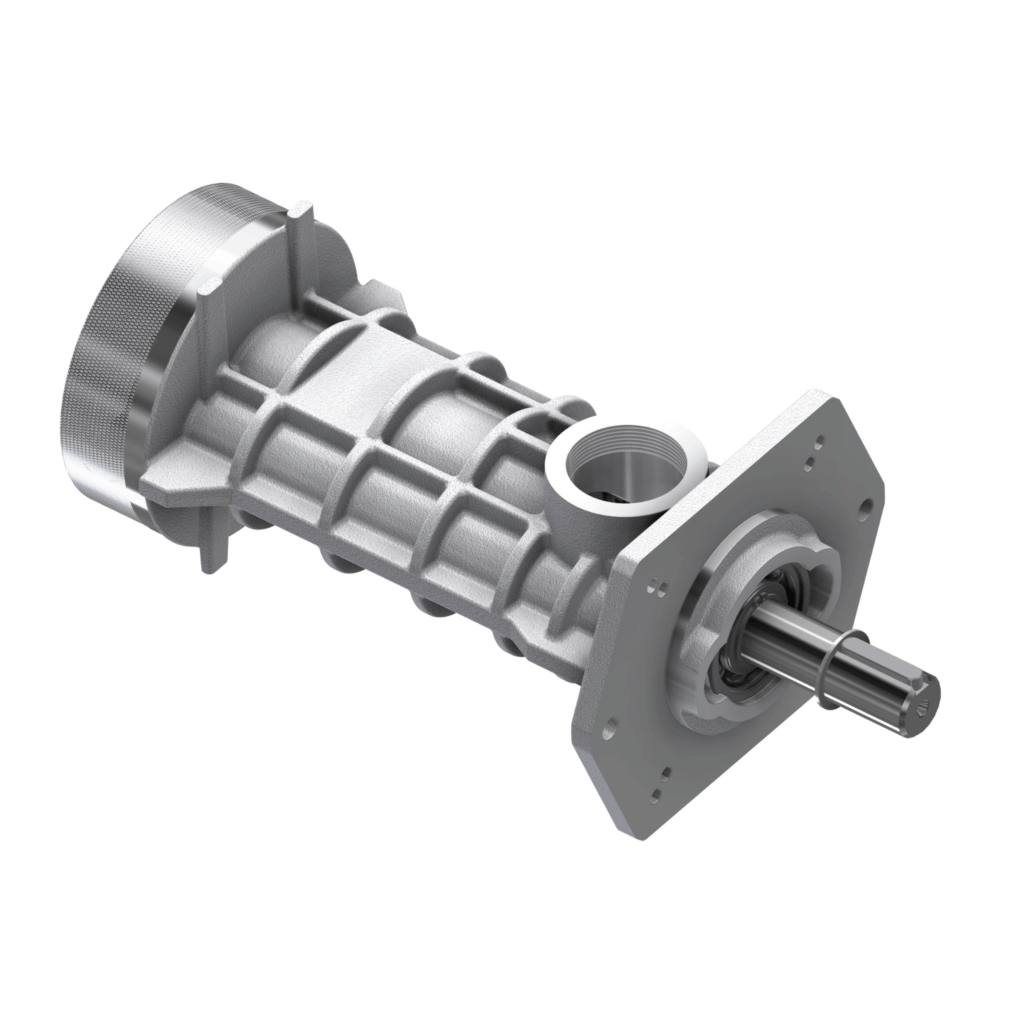

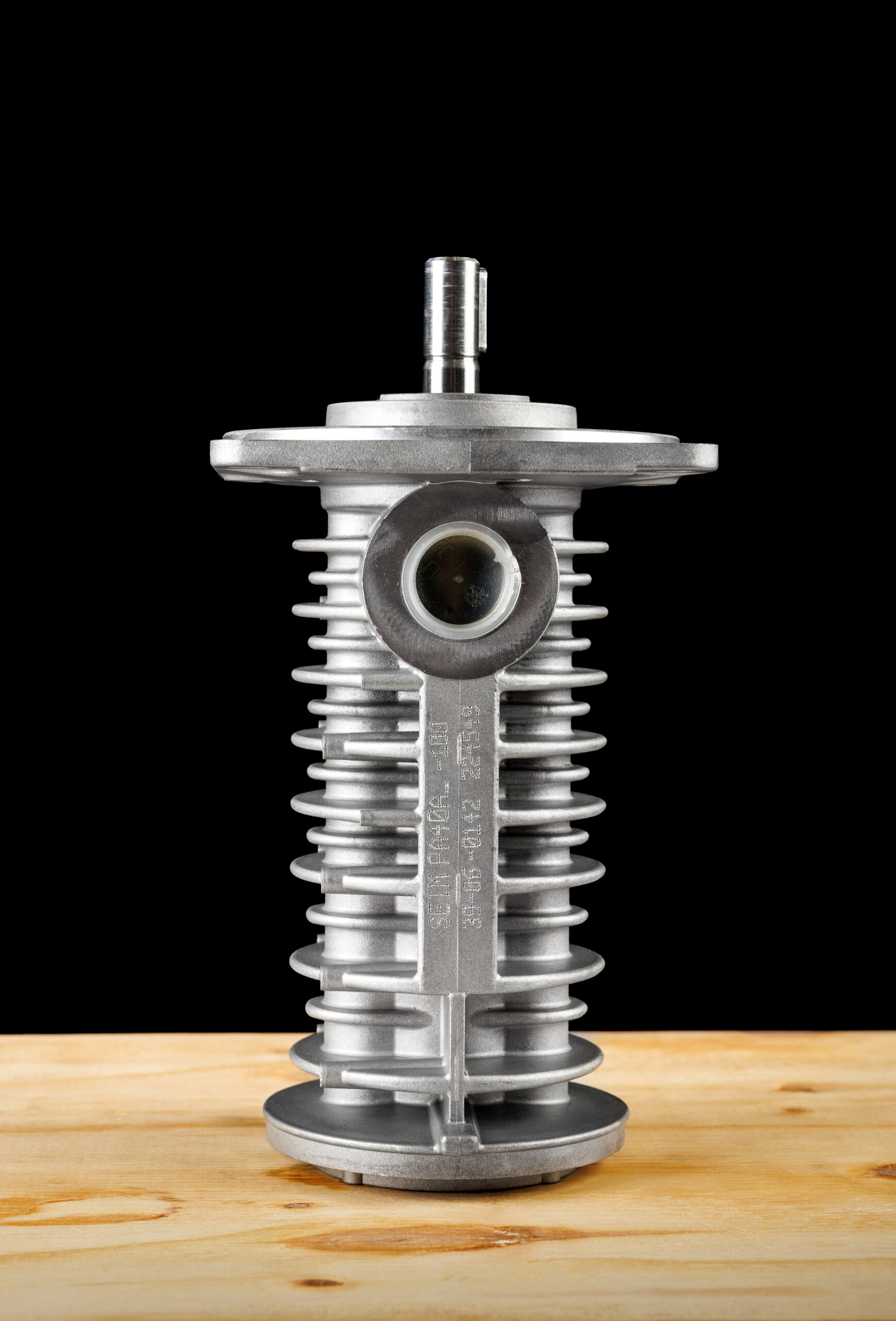

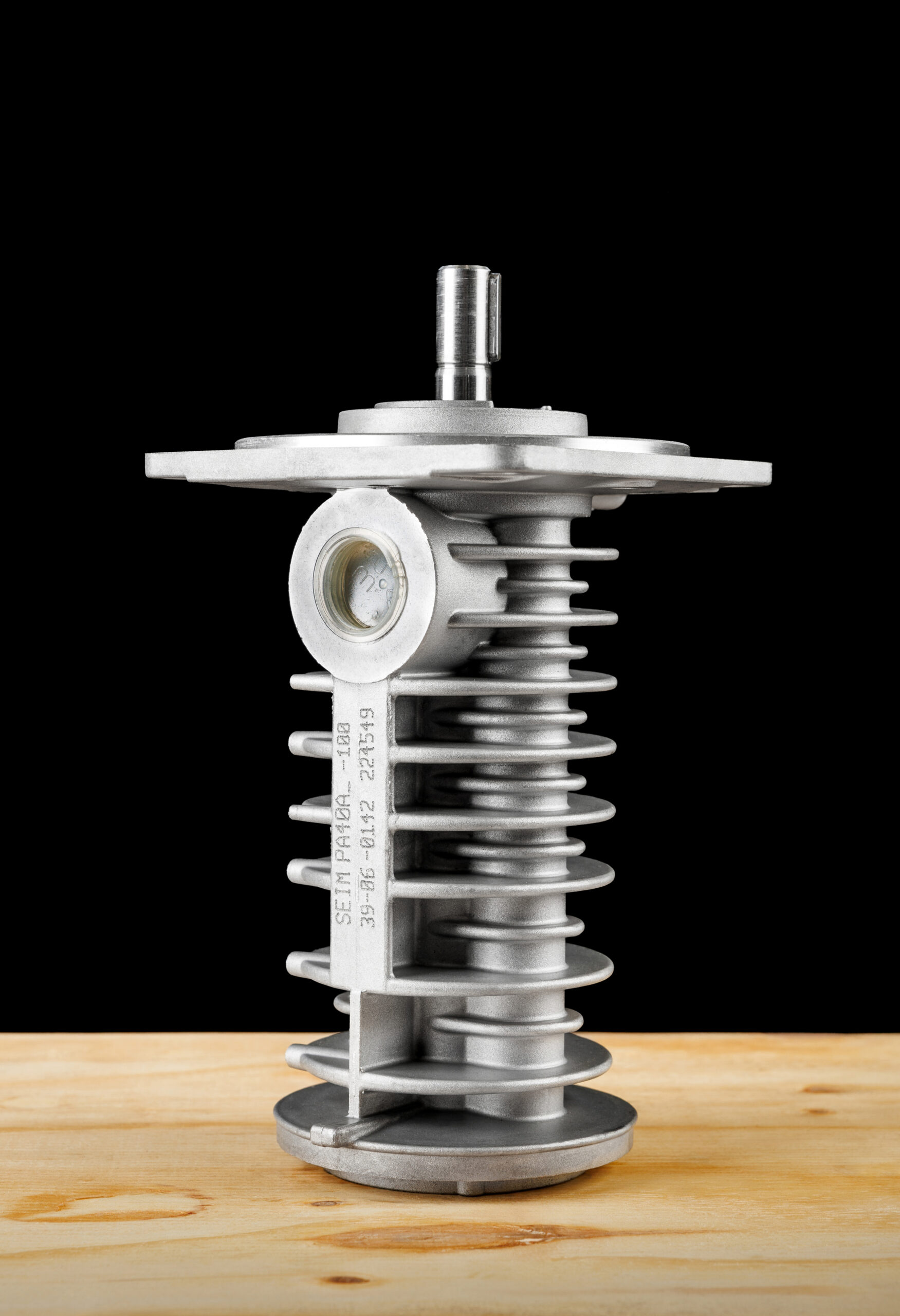

PA – EU series pumps are three-spindle screw pumps designed for use in hydraulic power units, particularly for elevator applications and lubricating oil systems used in the European markets. These pumps operate fully submerged in the fluid and are directly coupled to the motor via integrated flange.

Typical installation is vertical, with the entire pump-motor unit submerged in the reservoir to ensure continuous priming and reduced noise.

Main features & benefits:
✅ Fully submerged operation for optimal suction and noise reduction

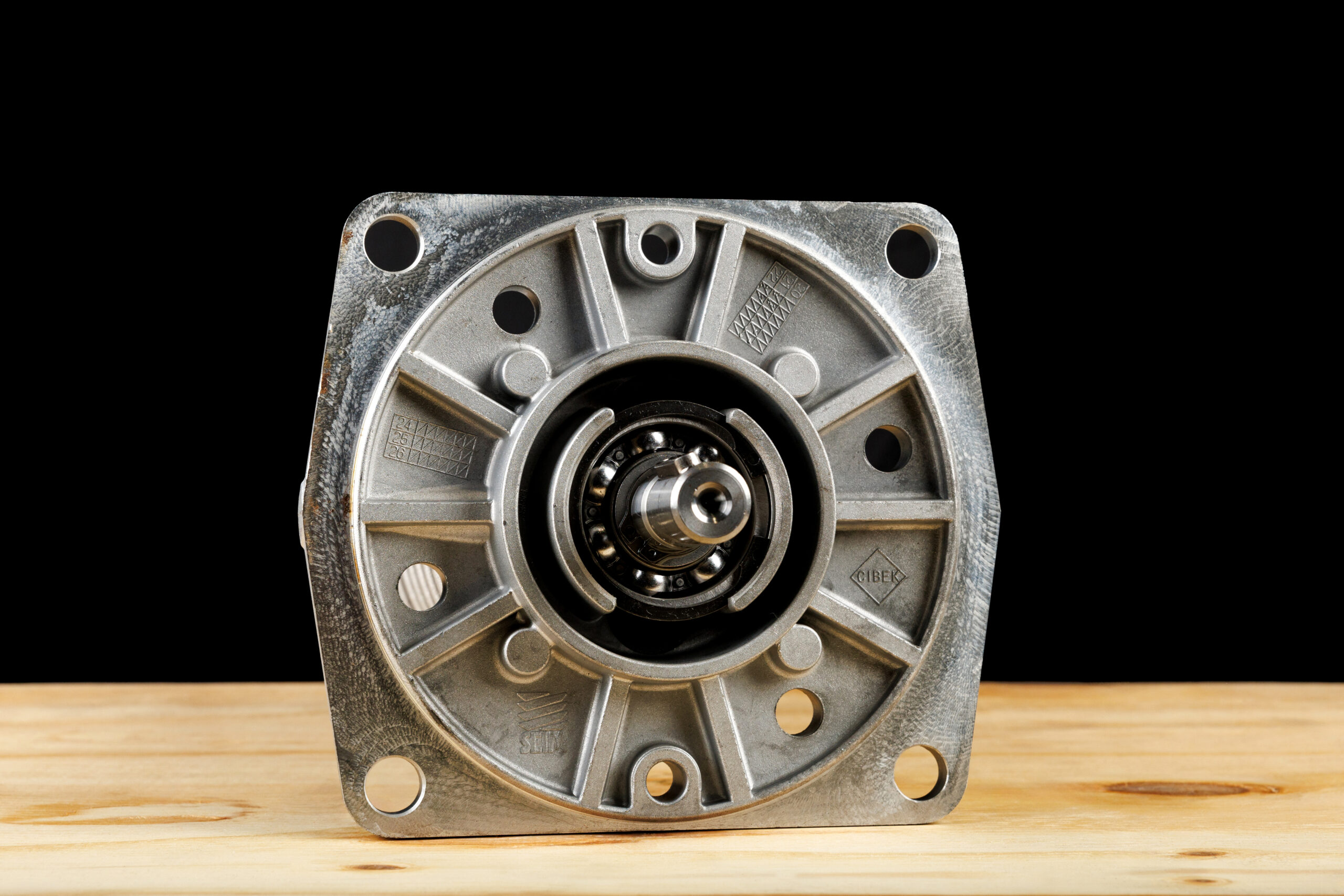

✅ Integrated motor flange for direct coupling
✅ Compact and space-saving design

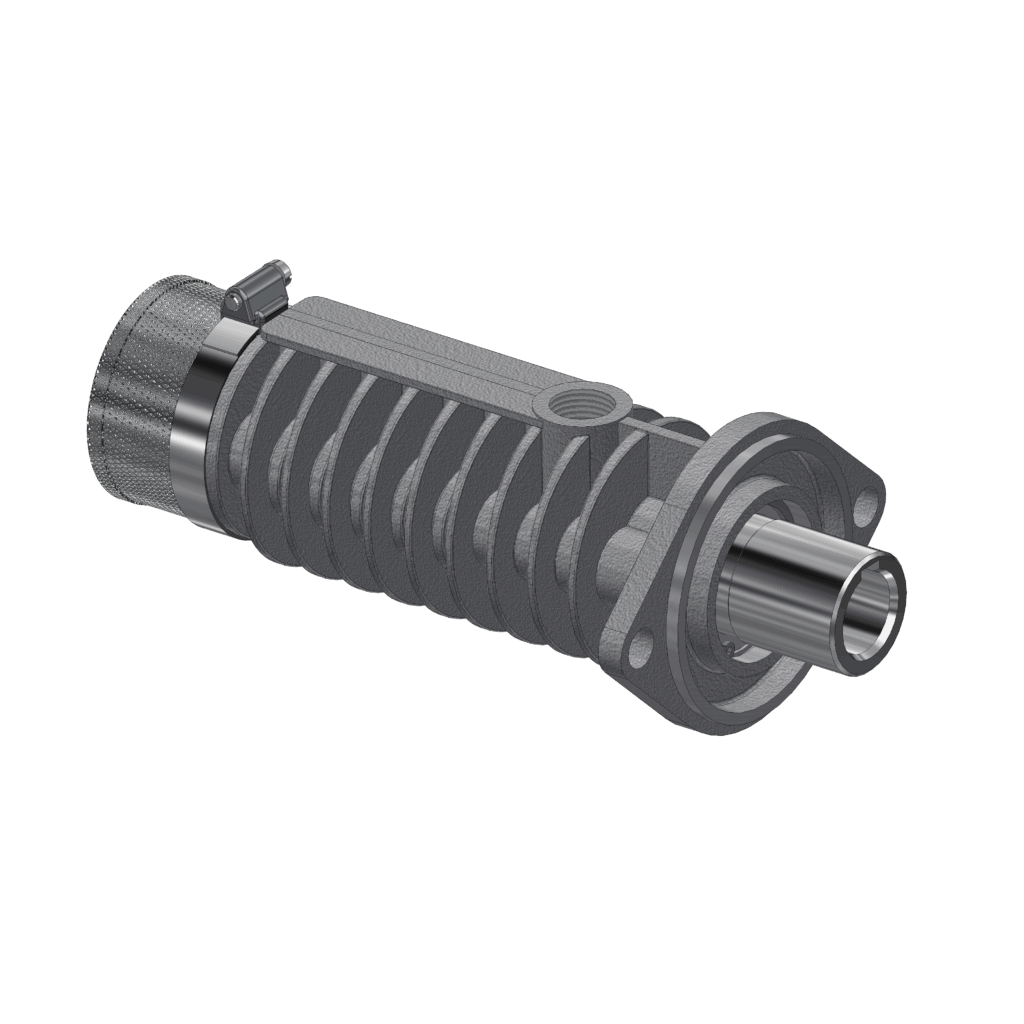

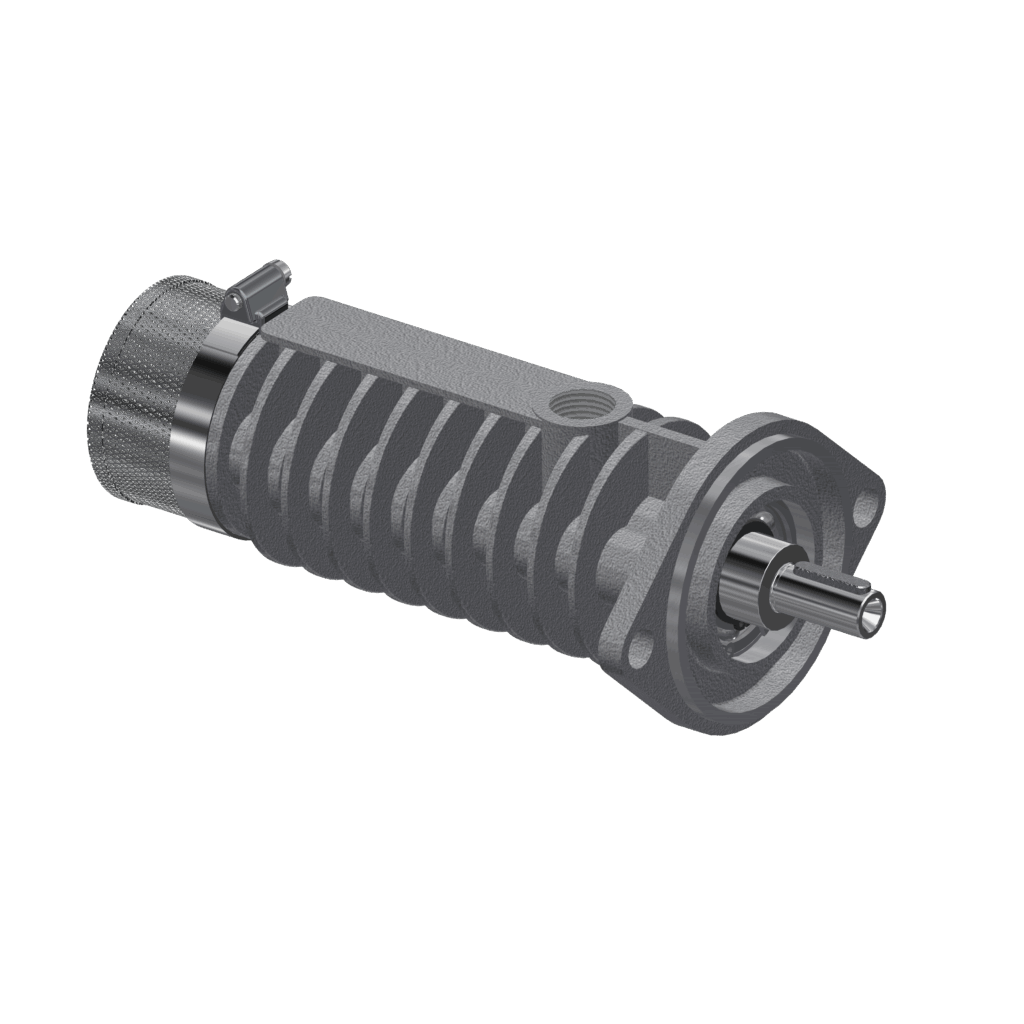

✅ Internal metal mesh filter on suction side
✅ Designed for clean mineral or synthetic oils (max 25 µm solid particle size)
✅ Low noise emission: 53–58 dBA at 2900 rpm
✅ Operating pressure up to 60 bar
✅ No mechanical seal – simplified maintenance
✅ Reliable performance in elevator and lubrication systems
